Patented SNARECOIL™ 13 gauge × 2 inch bone marrow biopsy needle. The thinner cannula and shorter working length are designed for thin-cortex biopsy contexts and other smaller-anatomy applications.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician.
The Ranfac RBN-132 is a 13 gauge × 2 inch single-use bone marrow biopsy needle in the patented SNARECOIL™ family. The thinner 13 G cannula and shorter 2-inch working length make this configuration the smallest in the line — designed for thin-cortex anatomy and other contexts where reduced cortical depth and a smaller bore are preferred.
RBN-132 is the small-bore short-length 13 G × 2 inch SNARECOIL™ configuration, intended for thin-cortex anatomy, lower-volume diagnostic, or specialized-protocol biopsy. The 3 inch RBN-133 extends the same gauge for slightly deeper access.
Per 510(k) K983187: For procuring bone marrow core biopsies from patients with hematologic abnormalities. Per IFU 29024-01P: The Ranfac Bone Marrow Biopsy Needle is indicated for the surgical harvesting of bone marrow.
13 gauge × 2 inch SNARECOIL™ is selected for posterior iliac crest biopsy where thin-cortex anatomy, low BMI, or any context calls for a smaller-bore, shorter-depth instrument is clinically appropriate. Per the 29024-01P Rev J Instructions for Use, the device is contraindicated for sternal procedures and should only be used at sites approved by the supervising physician.
Smaller bore and shorter working length for thin-cortex posterior iliac crest biopsy. Use only at sites approved by the supervising physician.
Low-BMI patients, geriatric anatomy, or shallow cortical access where 11G/4-inch needles are not appropriate.
Captive specimen retention supports recovery of long, non-fragmented cores.
Long, intact cores reduce specimen-handling artifacts during fixation, sectioning, and immunohistochemistry — supporting accurate, reproducible reads.
Construction, regulatory, and packaging details. Gauge, length, cannula and stylet are listed in the hero above. For complete indications, contraindications, and warnings, download the Instructions for Use.
| Construction | Stainless steel cannula and stylet · medical-grade polymer ergonomic handle with capture lever |
|---|---|
| Connection | Proximal luer cap (optional luer-lock for aspirate syringe per IFU) |
| Sterilization | Ethylene oxide · single-use · latex-free |
| Packaging | Individually pouched |
| FDA Clearance | 510(k) K983187 (10 Dec 1998) · Class II · Product Code KNW |
| Prescription | Rx only (21 CFR 801 Subpart D) |
Summary only. The complete 25-step bilingual Instructions for Use (29024-01P Rev J), including contraindications, warnings, and specimen-retrieval technique, accompanies every device and is downloadable below.
The 13 gauge × 2 inch configuration is designed for thin-cortex biopsy contexts and other smaller-anatomy applications, but procedure suitability and biopsy site selection are the responsibility of the supervising physician per the IFU.

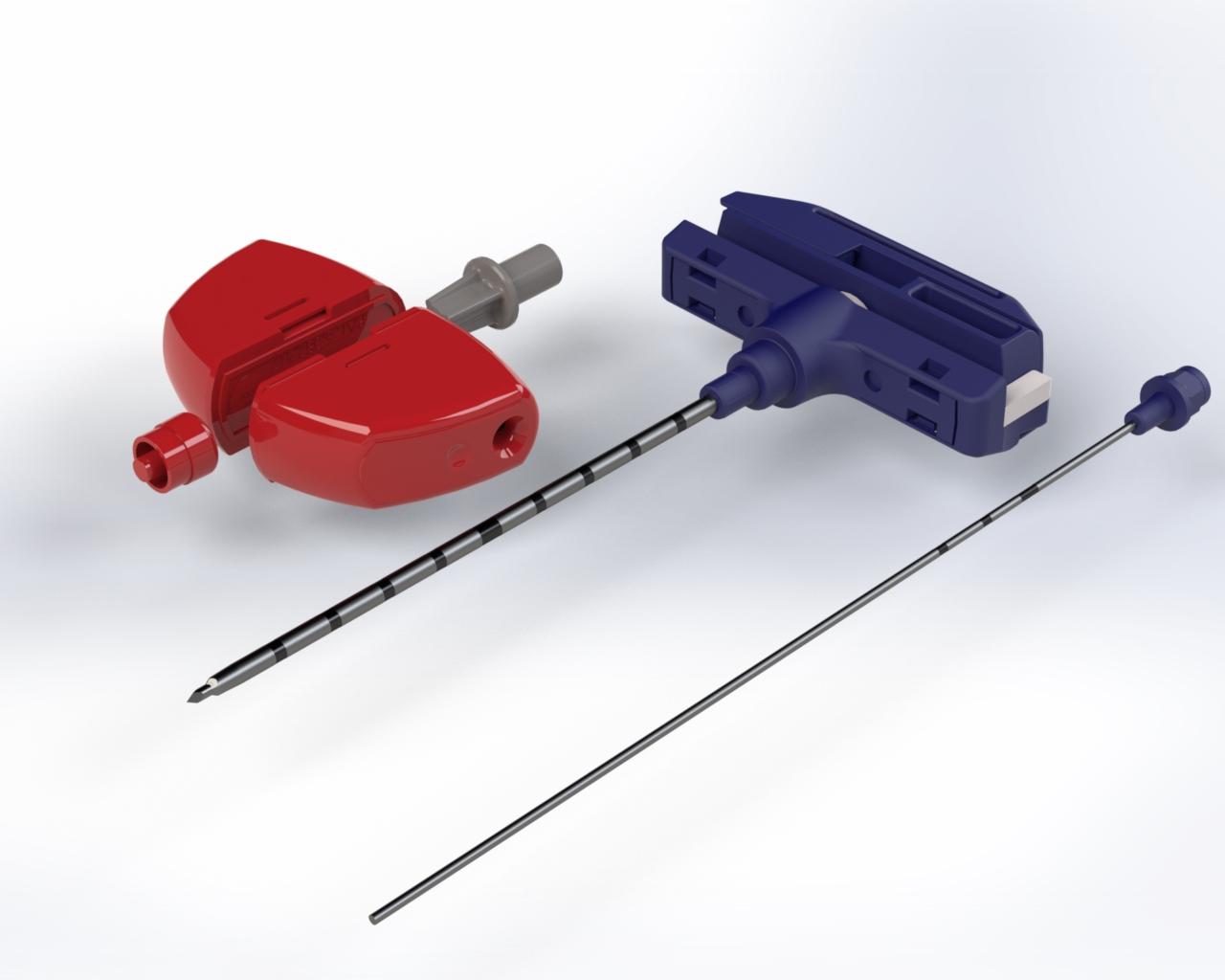

Both are 13 gauge SNARECOIL™ biopsy needles. RBN-132 has a 2-inch working length; RBN-133 has a 3-inch working length. Selection is driven by cortical depth at the planned biopsy site.
SNARECOIL™ is Ranfac's patented captive specimen-capture mechanism. A lever on the ergonomic handle engages the cannula tip to retain the marrow core during withdrawal.
Yes. Cleared under 510(k) K983187, Class II, Product Code KNW. Prescription use only.
No. The 29024-01P Rev J Instructions for Use explicitly contraindicates sternal procedures.
Yes. Gauge, length, handle ergonomics, and packaging can be customized for OEM/private-label programs on the Ranfac single-source platform. Contact us.

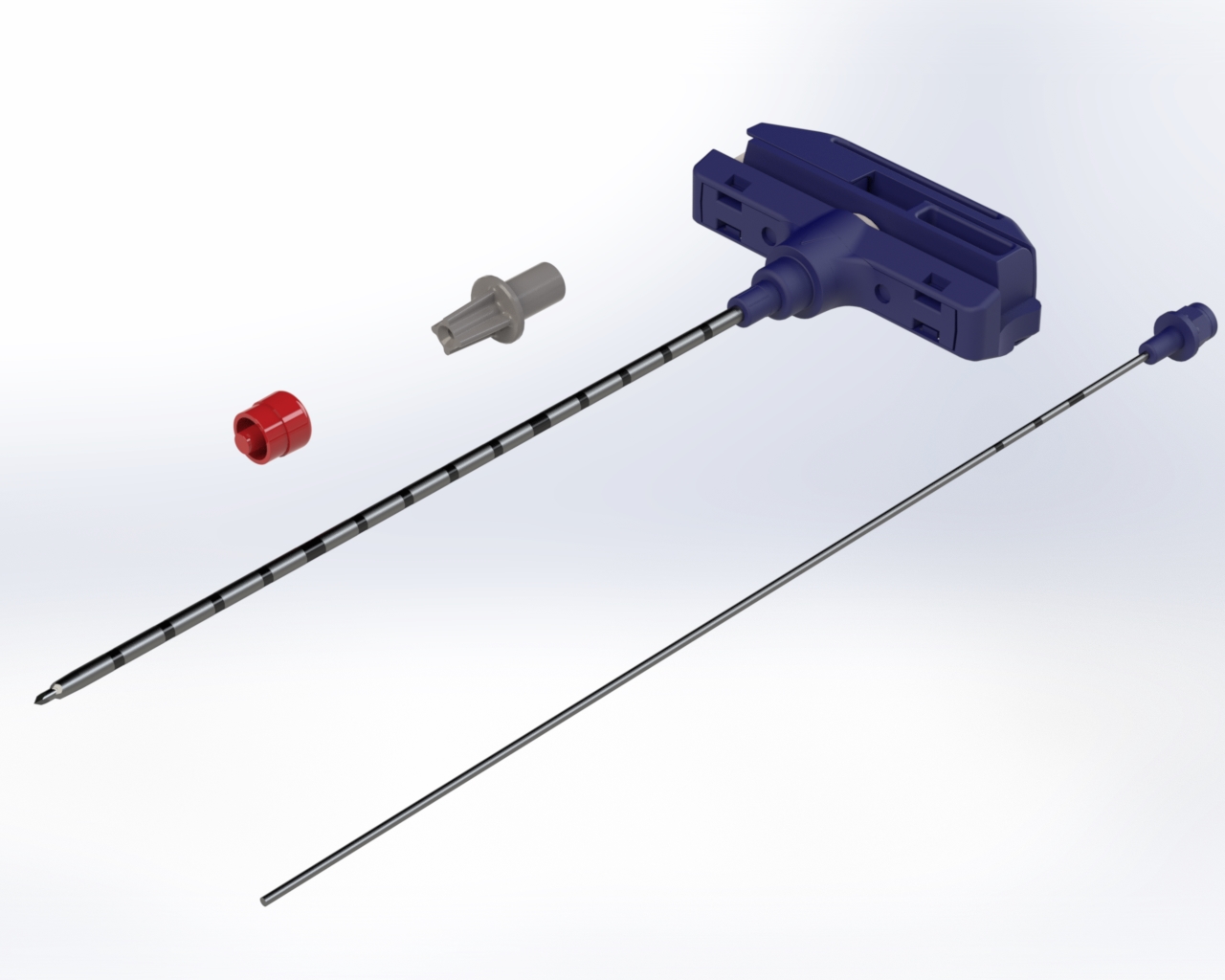

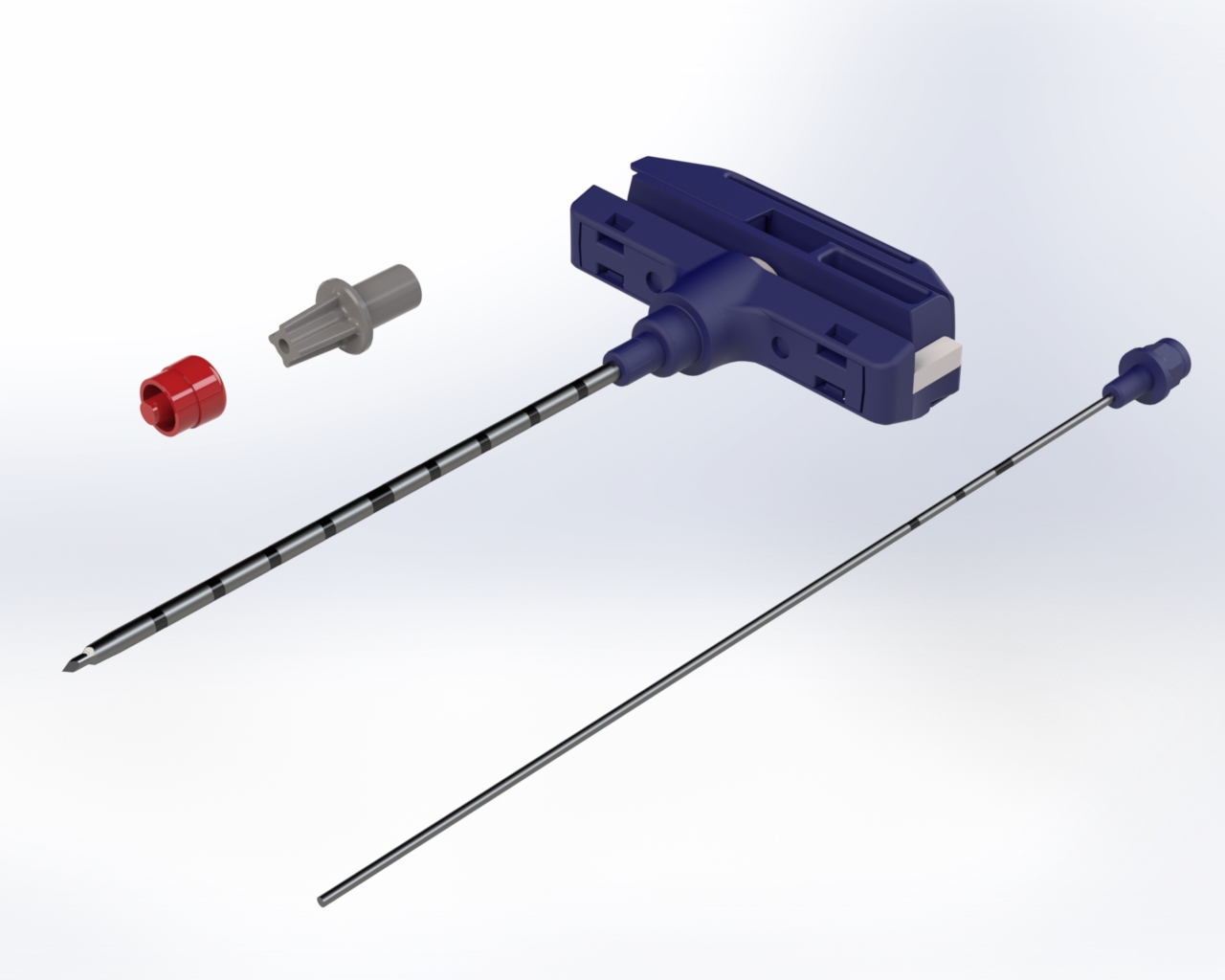

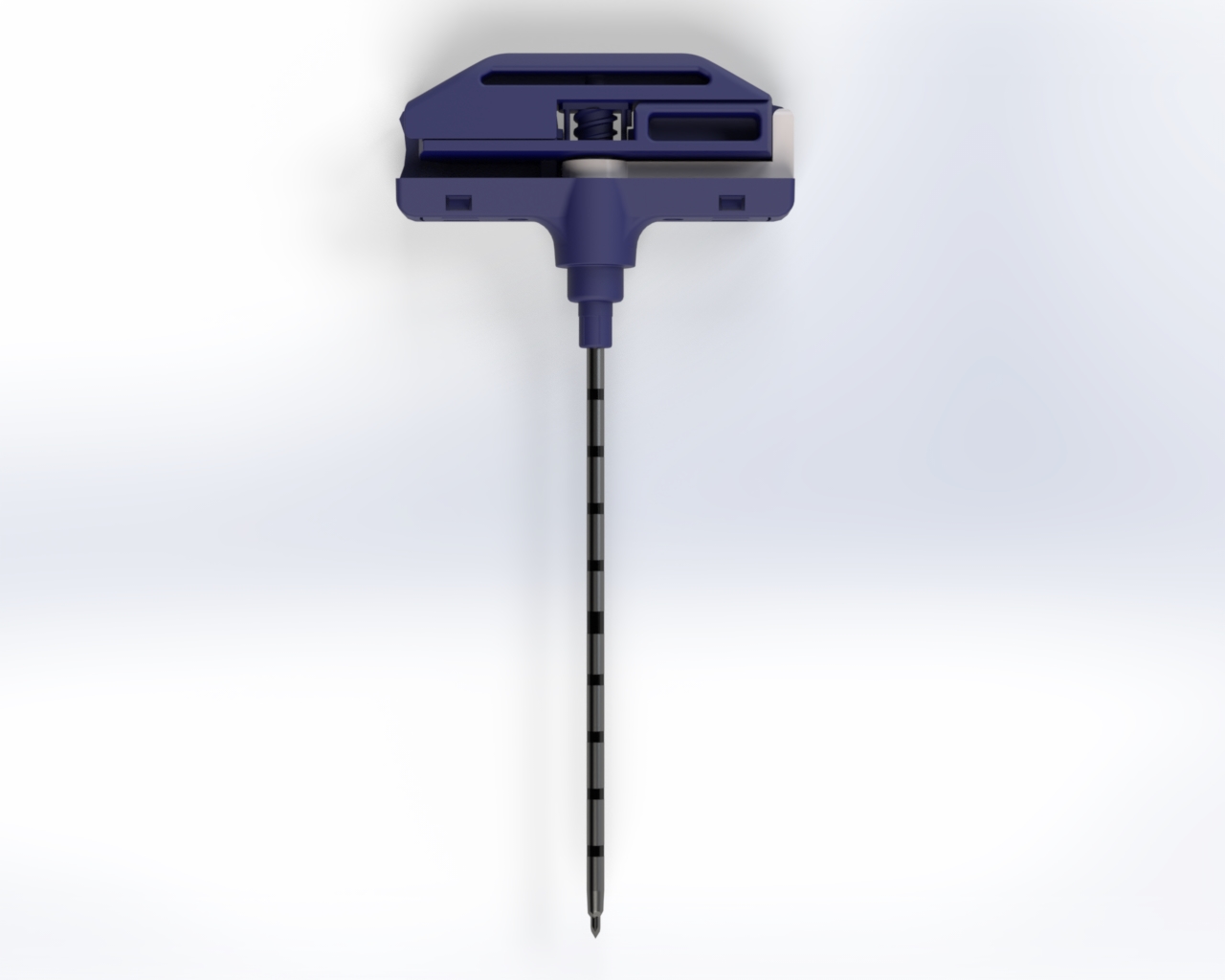

Other configurations in the Ranfac Hematology family.
