Specialty 11 gauge × 6 inch SNARECOIL™ bone marrow biopsy needle. Same patented captive-mechanism handle as the standard SNARECOIL™ family in a distinct configuration. Specific specialty designation — confirm with Ranfac sales for the intended use case.
Caution: Federal (USA) law restricts this device to sale by or on the order of a physician.

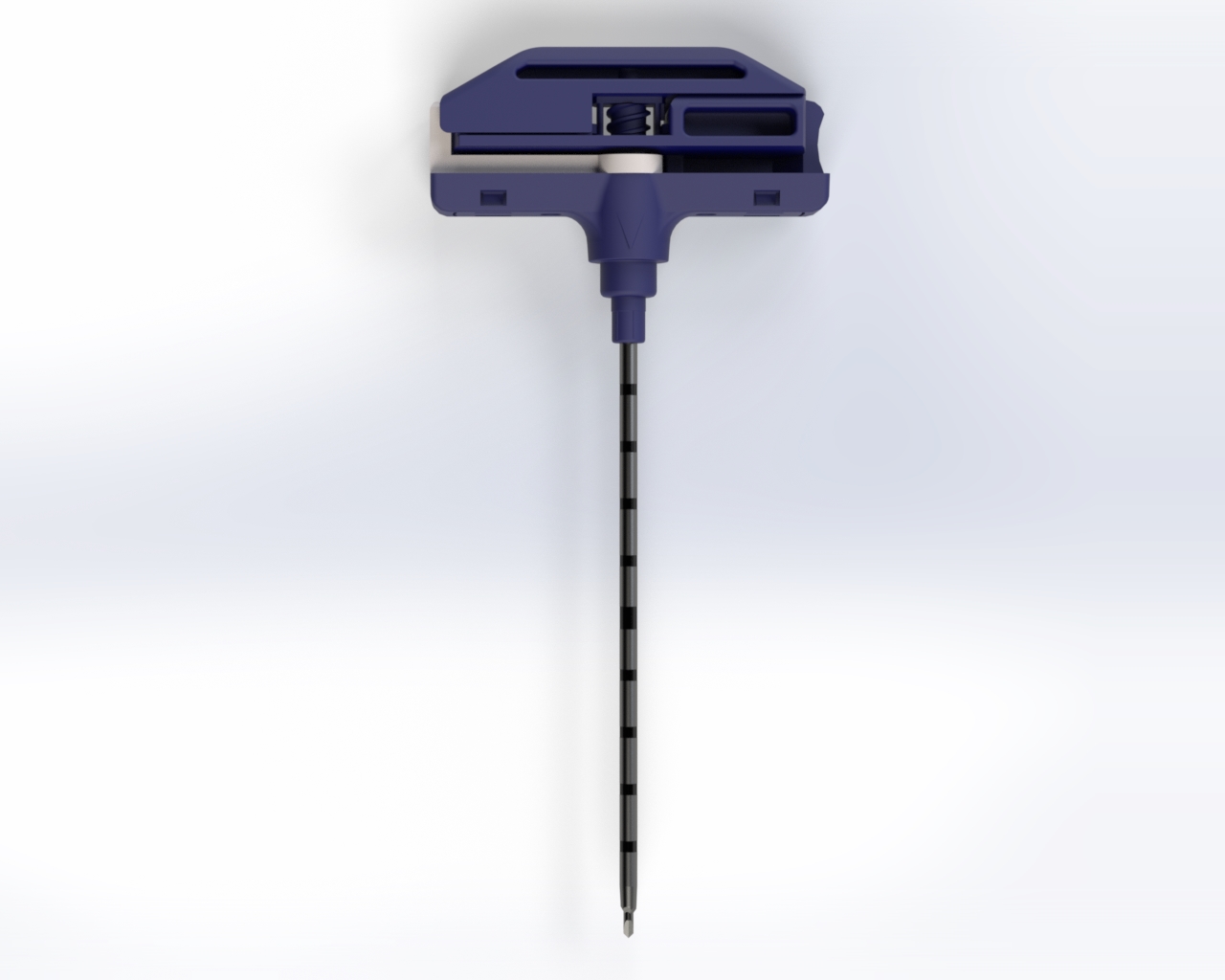

The Ranfac RBN-114S is a specialty 11 gauge × 6 inch single-use bone marrow biopsy needle in the patented SNARECOIL™ family. The 6-inch working length accommodates deeper anatomy than the standard RBN-114 (4 inch). The ergonomic handle includes a captive-mechanism lever (gray OPEN/CLOSED indicator) that engages the specimen at the distal cannula tip for long, intact core recovery.
RBN-114S is a specialty 11 G × 6 inch SNARECOIL™ variant, supplied for OEM and private-label programs. The standard catalog 6 inch configuration at the same gauge is the RBN-116; the more common 4 inch RBN-114 covers routine diagnostic biopsy.
Per 510(k) K983187: For procuring bone marrow core biopsies from patients with hematologic abnormalities. Per IFU 29024-01P: The Ranfac Bone Marrow Biopsy Needle is indicated for the surgical harvesting of bone marrow.
11 gauge × 6 inch SNARECOIL™ configurations are used in posterior iliac crest biopsy where deeper cortical access is required (e.g., higher-BMI patients) and a captive specimen-retention mechanism is preferred to support long, intact core recovery. Per the 29024-01P Rev J Instructions for Use, the device is contraindicated for sternal procedures.
6-inch working length supports deeper cortical access in higher-BMI patients.
Lymphoma, leukemia, MDS, multiple myeloma workups requiring intact core specimens.
Long, non-fragmented cores reduce specimen-handling artifacts during fixation and sectioning.
Long, intact cores reduce specimen-handling artifacts during fixation, sectioning, and immunohistochemistry — supporting accurate, reproducible reads.
Construction, regulatory, and packaging details. Gauge, length, cannula and stylet are listed in the hero above. For complete indications, contraindications, and warnings, download the Instructions for Use.
| Construction | Stainless steel cannula and stylet · medical-grade polymer ergonomic handle with capture lever |
|---|---|
| Connection | Proximal luer cap (optional luer-lock for aspirate syringe per IFU) |
| Sterilization | Ethylene oxide · single-use · latex-free |
| Packaging | Individually pouched |
| FDA Clearance | 510(k) K983187 (10 Dec 1998) · Class II · Product Code KNW |
| Prescription | Rx only (21 CFR 801 Subpart D) |
Summary only. The complete 25-step bilingual Instructions for Use (29024-01P Rev J), including contraindications, warnings, and specimen-retrieval technique, accompanies every device and is downloadable below.
Both are 11 gauge × 6 inch SNARECOIL™ bone marrow biopsy needles cleared under K983187. The 'S' suffix designates a specialty configuration with a distinguishing characteristic that is specified separately from the family IFU. Contact Ranfac sales to confirm the intended use case before ordering.
SNARECOIL™ is Ranfac's patented captive specimen-capture mechanism. A lever on the ergonomic handle engages the cannula tip to retain the marrow core during withdrawal, helping recover long, non-fragmented specimens.
Yes. Cleared under 510(k) K983187, Class II, Product Code KNW. Prescription use only.
No. The 29024-01P Rev J Instructions for Use explicitly contraindicates sternal procedures with this device.
Yes. EO-sterilized, single-patient-use, not made with natural rubber latex.
Yes. Gauge, length, handle ergonomics, and packaging can be customized on the Ranfac single-source platform. Contact us.
